Hand Indexing Auto Winding For Hook Commutator Armature Rotor Coil Winding

Name: Hand Indexing Auto Winding For Hook Commutator Armature Rotor Coil Winding
Brand: WIND AUTOMATION
Price: 1 USD

Brand Name : WIND AUTOMATION

Model Number : WIND-RW-S

Certification : Main parts CE

Place of Origin : China Best No Hook Commutator Armature Winder

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T

Delivery Time : 45 Working Days

Packaging Details : Poly wood case suitable for sea and air shipment

Armature commutator type : Hook commutator or Armature without commutator

Armature manufacturing : Vacuum cleaner hammers power tool armatures

Winder flyer : Single flyer winding can wind different slots

Winding motor : Mitsubishi servo motor 1000W

Armature rotor stack : Straight stack or skew with different initial positioning way

Winding way : Semi-auto winding,Step, JOG

Contact Now

Semi Auto Flyer Winder For Hook Commutator Armature Rotor Coil Winding WIND-RW-S

Application:

Armature winder for slotted type commutator armature,Vacuum cleaners hammers power tool

Advantages:

1. Economic Armature Coil Winding /Rotor Winder for small quantity armature production

2. Tooling can be changed easily for types of armatures

3. Single flyer winding can wind different slots

4. Winding flyer is driven by Mitsubishi servo motor

Main Data:

Main spindle winding speed: 0~1000RPM

Winding motor : Mitsubishi servo motor 1000W

Indexing motor: Stepper motor

With PLC control system and touch screen panle

Air pressure: 0.5~0.7Mpa

HS code: 8479811000

Winding Machine Operation process:

Manually load armature,automatically indexing, manually hooking,automatically winding

Please click below picture to view video

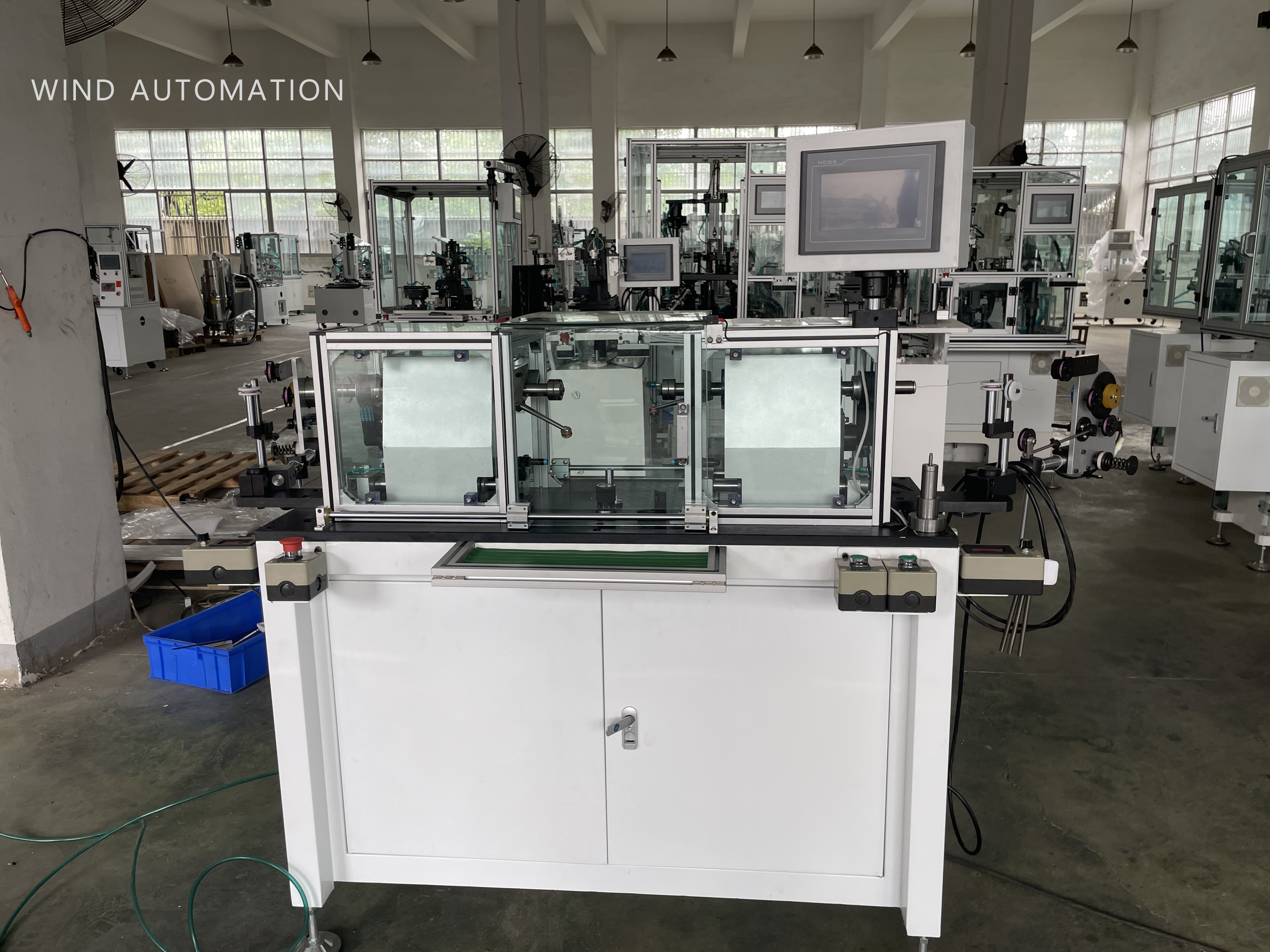

Hand Indexing Auto Winding For Hook Commutator Armature Rotor Coil Winding

Double flyer armature winder manually load armature,automatically indexing,

manually hooking,automatically winding https://vimeo.com/137616170

Single flyer rotor winding manually load armature,automatically indexing,

No hooking,automatically winding https://youtu.be/pjPb-gFjyJQ

Armature winding machine semi auto type WIND-RW-S from EmilyGao of coils winding supply on Vimeo.

Buy cheap Hand Indexing Auto Winding For Hook Commutator Armature Rotor Coil Winding product

Hand Indexing Auto Winding For Hook Commutator Armature Rotor Coil Winding Images
