Motorcycle Magneto Engine Generator Stator Winding Machine Coil Winder WIND-MW-4
Application:
Motorcycle Magneto Engine, Generator Stator,Outside stator, Outrunner stator
Advantages:
1. Motorcycle Magneto Engine Stator dedicated machine widely used in
outside stator winding for motorcycle magneto manufacturers

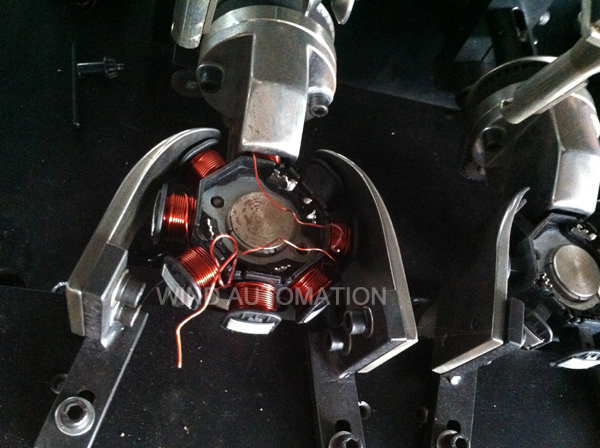

2. Magneto Engine Stator have thin and thick winding on outside segments,
machine can wind both type with thin and thick wire
3. Well known brand part inlcuding three Mitsubshi Servo device,Mitsubishi PLC
ensure the winding quality
4. Many China Local users in Chongqing which is the city of Motorcycle use this type,
Time tells the constant quality of the stator coil winding machine
Parameter:
Power supply: 220V, 50HZ
Motor: Winding Mitsubshi 1000W servo motor
Arraying Mitsubshi 400W servo motor
Indexing Mitsubshi 400W servo motor
Wire diameter:0.45mm~1.25mm
Unit OD:70~250mm
Spindle: 0~1500rpm
Turns No.0-999
Air pressure: 0.5-0.7Mpa
Pneumatic: Airtac
Question and answer:
Question:
How many stators will this machine be capable of winding in an hour?
Answer:
It take around 4 to 5 minutes to wind one stator by one winding head ,
So normally machine can wind around 12pcs to 15pcs stators in one hour,
It depends on the turns no. and the slots no. of the stator coils.
Magneto polarity motor stator winding Machines with 2 station and 4stations for different yield
| Stator winding machine application | Motorcycle Magneto Engine, Generator Stator, Outside stator, Outrunner stator |
| Winding station | 2 station or 4 station or different stator manufacturing yield |
| Winding machine control system | Winding, indexing, arraying are all Mitsubshi servo motor |
Please click below picture to view video
Magneto is with AC or DC ignition,DC ignition is with two groups of coils, one group is a charge coil, the
other isthe trigger coil. AC ignition is with three groups of coils, one charge coil, one ignition charge coil
and the trigger coil.
Charging coil provides power for the vehicle, an ignition charge coil providespower for the ignition, trigger
coilprovides pulse igniter.
Magneto is a motorcycle generator, there is magnet on magnetic rotor, it is not one but several
parts,rotate with crankshaft, the stator coil cutting magnetic line of force will be generated with the
generator current, itsprinciple is exactly the similar as a generator. The rotor magnet is polar, but which
side is the N pole, which side is the S pole is not important, as long as the change in the order of their
corresponding line installed in the rotor in line.
Our magneto winding machine is easy to operate after setting, you only need to select the related
program no. on touch screen, then machine will begin to wind automatically,
For example if you have 20 different sizes of generator, we could set the machine per your 20 generator
samples,
You only need to select the related program, change tooling, then begin to wind.
