Commutator Face Roundness Turning Machine Armature Com Fine Lathe WIND-CT-TH4
Application:
The lathe turning machine WIND-CT-TH4 is designed to finish turn the commutator brush track area of
relatively small fractional horsepower motor armatures, starter armatures commutator.
| Commutator turning place | After welding, can turn the commutator OD and riser OD of automotive armature |
| Cutter number | One cutter |
| Servo axis device | With two servo axis |
| | X axis control the length of turning left right horizontal position Z Axis control the depth of lathing in vertical position |
Advantages:
1.Precise with two axis Delta servo device control (Delta have quick and good after-service if any
question)
2.Delta PLC
3.Delta inverter
4. ABB 3Phase AC motor
5.Japan belt and coupling

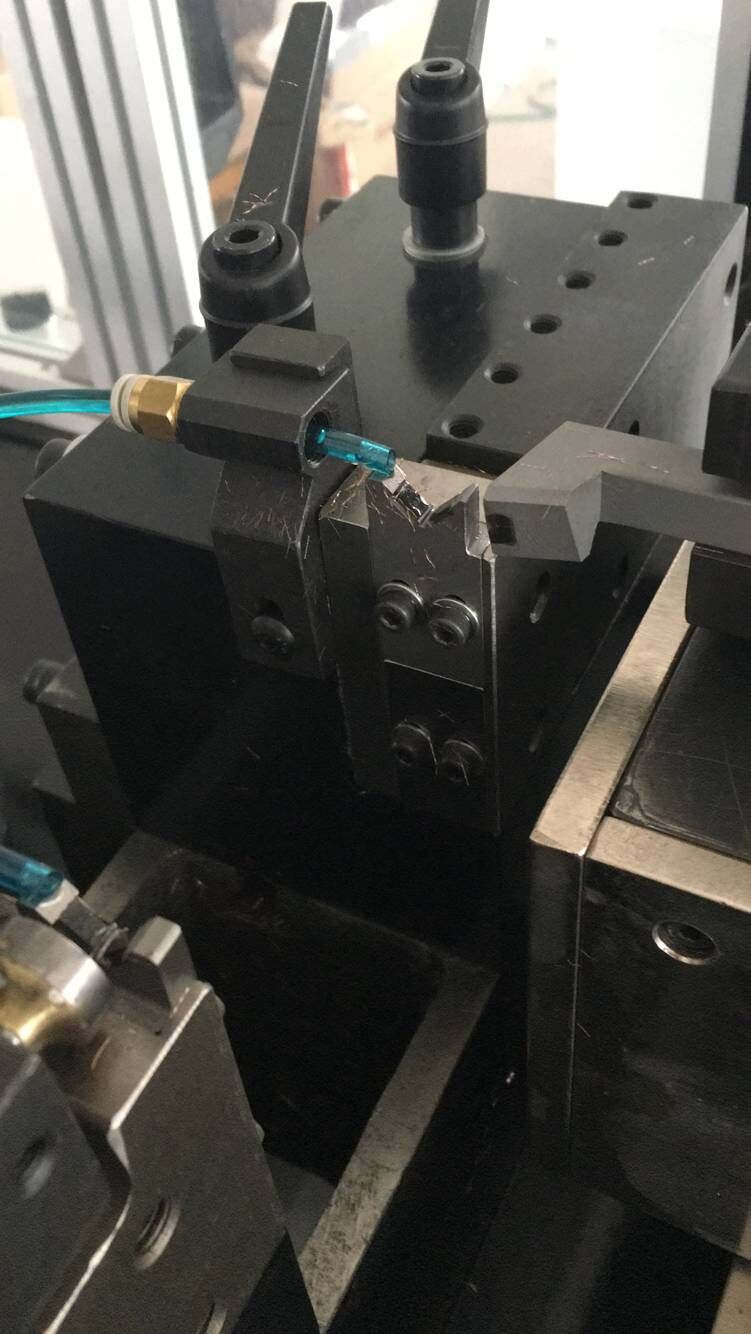

6.Diamond V holder and Diamond cutter
Specification:
1. Roundness < 0.003mm
2. Surface roughness
3. Armature OD 20~80mm
4. Shaft length:32~250mm (If longer need custom made)
5. Shaft Diameter: 2~18mm (can be custom made)
6. Commutator OD: 4.3~60mm
7. Stack OD: 20~110mm
8. Cutting amount:Rough cut Max0.20mm
9. RPM modulate: 0~60Hz
10. Cutter unit: 1um~0.5mm and speed adjustable
11. Cutting length:Max50mm
12. Cutting times: X axis can be setted up to 4times, Z axis 4times can be setted up to 4times
13. Air source: 5~7 MPa
14. Power source 220V 50/60Hz
15. Machine Power: 2.5kw
Question and Answer:
Question:
Is it possible to process both type of armatures using one machine,or it requires different tooling?
Answer:
Yes, you can use one machine and it requires two different kind of V shape Diamond fixture.
Question:
Does the turning machine have a memory with pre-set programmes for different armatures?
Answer:
No, when you change to a new type armature, you need to adjust the cutter position.
The lathe turning machine is designed to finish turn the commutator brush track area of
relatively small fractional horsepower motor armatures, starter armatures commutator.
Please click below link to view the video
https://youtu.be/X9jOA-qUNX8
