Thin Wire Needle Winding Machine Small BLDC Motor Stator Four Station Muti Pole Winder

Brand Name : WIND AUTOMATION

Model Number : WIND-BLDC-4

Certification : CE

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T

Condition : New

Certificate : CE

Working Station : Four

Max Wire : 1.2mm

Automatic Type : Fully Automatic can handle thin wire thick wire

Machine Color : White or Per Customer Requirement

After salesWinding Speed : Engineers available to service machinery overseas

Contact Now

Thin Wire Small Size BLDC Motor Stator Four Station Muti Pole Winder WIND-BLDC-4







(1) Application

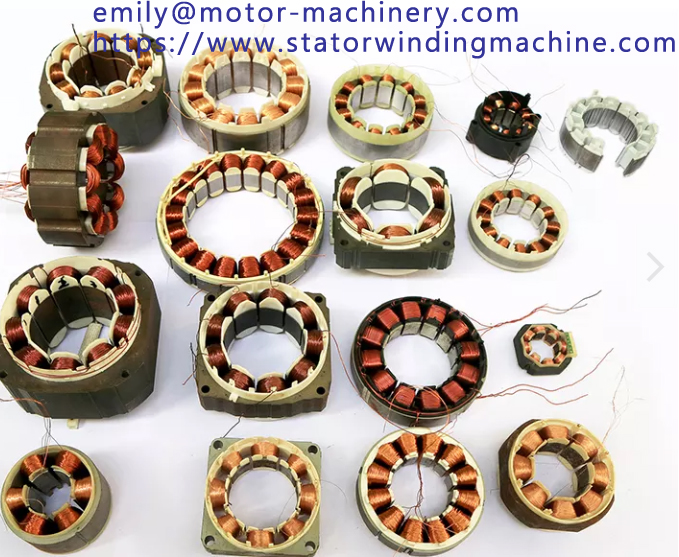

Needle winding BLDC stators of Sewing Machine,Air conditioning compressor, Refrigerator



compressor,water pump automotive application , fuel pump motor with 6 poles, 9 poles, 12 poles or



18 poles







(2) Advantages



Four station BLDC Stator winding machine WIND-BLDC-4 wind the brushless DC motor stator



with four station to improve efficiency!





All the toolings are very easy to be changed within 1 minutes expect



the power tool BLDC motor stator which have terminal wires on both sides, not one side.


Wound stator by Needle Winding Machine from Wind Automation
Thin Wire Needle Winding Machine Small BLDC Motor Stator Four Station Muti Pole Winder


(3) Parameter



Wire diameter:0.08 to 1.2mm (suitable for thin wire and small stator)



Stator ID: 12 to 130 mm



Stack height: 5 to 70mm



Winding motor: Servo motor Panasonic 3000W 1pc



Arraying motor: Servo motor Panasonic 2000W 2pcs



Indexing motor; Servo motor Panasonic 750W 2pcs



Speed: 300 to 600 RPM



Air pressure:5~7kg/square centi-meter



Power:AC380V 50/60Hz



Weight: about 480kgs



Dimension: 1800(L)x850(W)x1600(H)mm







Below samples are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 15pcs stators

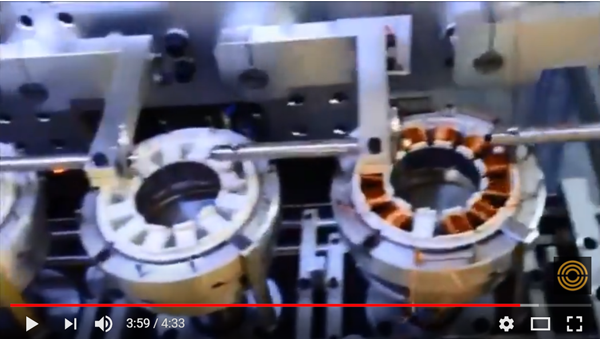

Please click below video to watch machine working



Thin Wire Needle Winding Machine Small BLDC Motor Stator Four Station Muti Pole Winder
