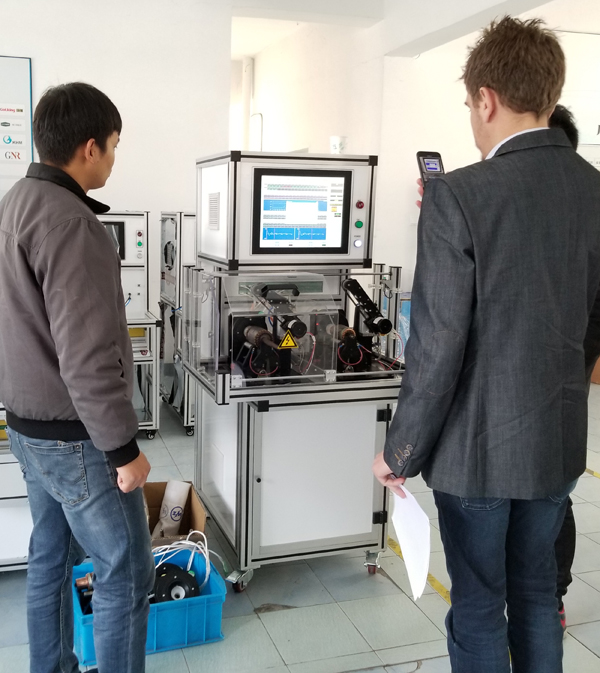

Starter Automatic Armature Testing Machine DC Resistance Surge Hipot Tester

Brand Name : WIND AUTOMATION

Model Number : WIND-ATS-02

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T

Delivery Time : 35 working days

Packaging Details : Wooden Pallet

Condition : New

Armature type : Starting Motor Armature

Working station : Double station

Automation type : Fully automatic

Testing item content display : Test result Intuitive display on screen one by one

Armature slots : 13, 17, 19 (few), 21,23,25,27, 28,29,33slots (common)

Contact Now

Starter Armature Automatic Testing Machine DC Resistance Surge Hipot Tester WIND-ATS-02







(1) Application



Starter armature upto 36 slots



covering 13, 17, 19 (few), 21,23,25,27, 28,29,33 slots (common)







(2) Advantages



a. Automatic positioning, the operator no need to check initial positioning by hand



b. The biggest starting armature manufacturer ordered over 10pcs and 100% satisfaction



c. Armature commutator bars ≤ 36 bars,



   Testing panel cycle time: 8~9s (according to 33bars)







(3) Technical Data





Test Item





Test Method





Bar to Bar resistance,0.01mΩ~10mΩ

(Out of range display OVER)





Four-terminal measurement to ensure accuracy





Welding resistance,0.001mΩ-10mΩ

(Out of range display OVER)





Six-terminal measurement to ensure accuracy





Cross resistance 0.01mΩ-10mΩ





Four-terminal measurement to ensure accuracy





Surge 100-1000V (100V/time)

Pulse crest:0.5u sec, Frequency 1~40MHz







Standard waveform is Write, OK waveform is Green,

NG waveform is Red





Isolation resistance DC 500V

Testing time:1~10s (0.1s/time)





Range:1~500MΩ

Accuracy: ≤±5%





Hipot AC 100-1000V





Testing time:1~10s (0.1s/time)









(4) Main Configuration



15’’ Touch screen Sampling Chip: BB Relay:NAIS High voltage relay:Meder



Pneumatic parts:Airtec



Power: AC 220V,50Hz



Air pressure:0.4~0.6MPa



Temperature:0~45℃



Dimension: 950mm*1250mm*580mm



HS Code:9030390000
