WIND-ATS-300 AC DC Motor Winding Machine Double Station Armature Testing Panel

Name: WINDATS300 AC DC Motor Winding Machine Double Station Armature Testing Panel
Brand: WIND AUTOMATION
Price: 1 USD

Buy cheap WIND-ATS-300 AC DC Motor Winding Machine Double Station Armature Testing Panel product

Brand Name : WIND AUTOMATION

Model Number : WIND-ATS-300

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T

Delivery Time : 20 working days

Packaging Details : Wooden case suitable for sea shipment

Condition : New

Testing Product : Armature with commutator bars below 96

Working station : Two station

Machine Color : White or Per Customer Requirement

After sales : Engineers available to service machinery overseas

Certificate : Main Parts CE

Contact Now

Double Station Armature Testing Panel Rotor Analyser Commutator Bars Below 96 WIND-ATS-300

(1) Application

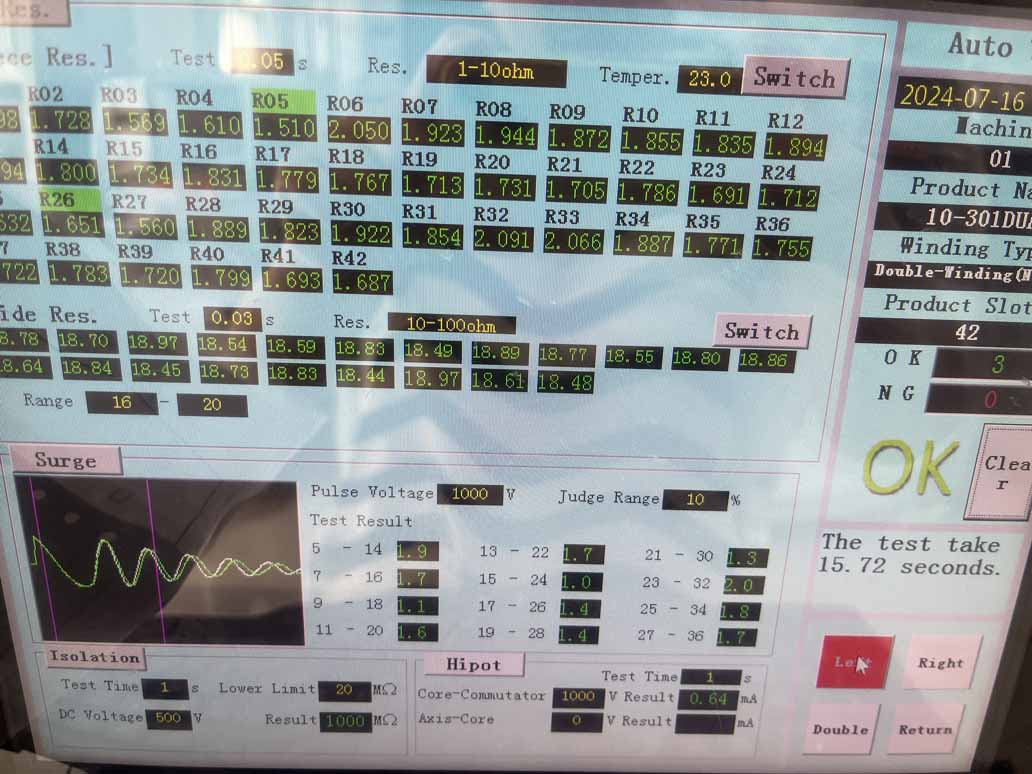

This armature testing machine test the bar-bar resistance, welding resistance, dielectric strength(Hi-pot),

insulation resistance and turn-turn insulation.

The loading and testing mode could be shifted by sliding the safety cover.

The testing panel starts testing once the safety cover being slid upon the working station.

WIND-ATS-300 AC DC Motor Winding Machine Double Station Armature Testing Panel

(2) Competitive Advantages

1.Test armature up to 96bars commutator

2. Double working station can be shited easily by move the safety cover

(3) Technical Data

WIND-ATS-300	Number of bars :≤96
Test items	Test Description	Test results
	0.001Ω-1000Ω	≤±0.5%Full scale
Inter-chip resistance	Automatic environment temperature compensation	≤±0.5%Full scale
	0.001mΩ-10mΩ	±10μΩ
Welding resistance	0.001mΩ-10mΩ	±10μΩ
	0.01Ω-1000Ω	≤±0.5%Full scale
180 resistance	Automatic environment temperature compensation	≤±0.5%Full scale
	100-2000Vpp	±2.5%
Surge	(Max 96 sets waveform)	±2.5%
	DC 500V	0.1-500MΩ
Isolation resistance	DC 500V	≤±2.5% Full scale
	AC 100-2000V	0-20mA
Hipot	(2set high pot test)	≤±2.5% Full scale

Power: AC220V ±10% @50Hz

Air pressure: 0.4-0.6Mpa

Temperature: 0-45℃

Armature testing machine manufacturer sample needed:

OK/NG Armature sample

Please click below link to view video

https://youtu.be/eiuCEeQbWCo
