Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting

Brand Name : WIND AUTOMATION

Model Number : WIND-SZ-1

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T

Delivery Time : 30 working days

Packaging Details : Wooden pallet suitable for sea or air shipment

Isolator Type : S shape, O shape, U shape

Insertion speed : 1 second per slot

Material : DMD, DM, Polyester film 0.18~0.2mm

Heater temperature for paper shape forming : 70 ~ 100 ℃

Machine Color : White or Per Customer Requirement

After sales : Engineer available for oversea support

Contact Now

Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting WIND-SZ-2







(1) Application



This paper inserting machine WIND-SZ-2 automatic heating, shaping, cutting off paper and



insertion,automatic indexing







(2) Competitive Advantages



a. Easy operation and quicker change tooling



b. The machine mechanical structure co-work perfectly with electronic system,



  achieve higher stable performance in starter armature manufacturing market



c. Wind Automation insist on using the best part for oversea market



     which can ensure the stable performance,save labor cost



     comparing to paper forming and manual inserting production process



d. User like Ametek put repated order because of its easy opearation and quick change tooling process







(3) Parameter



Insulation material thickness: 0.18~0.2mm


Armature stack height: Max 100mm



Power Supply: 220V±10% 50Hz



Air source Pressure: 0.5~0.7Mpa



Heating temperater: 70~100℃



Weight: Around 700KGS



Dimension: 1200*650*1500mm

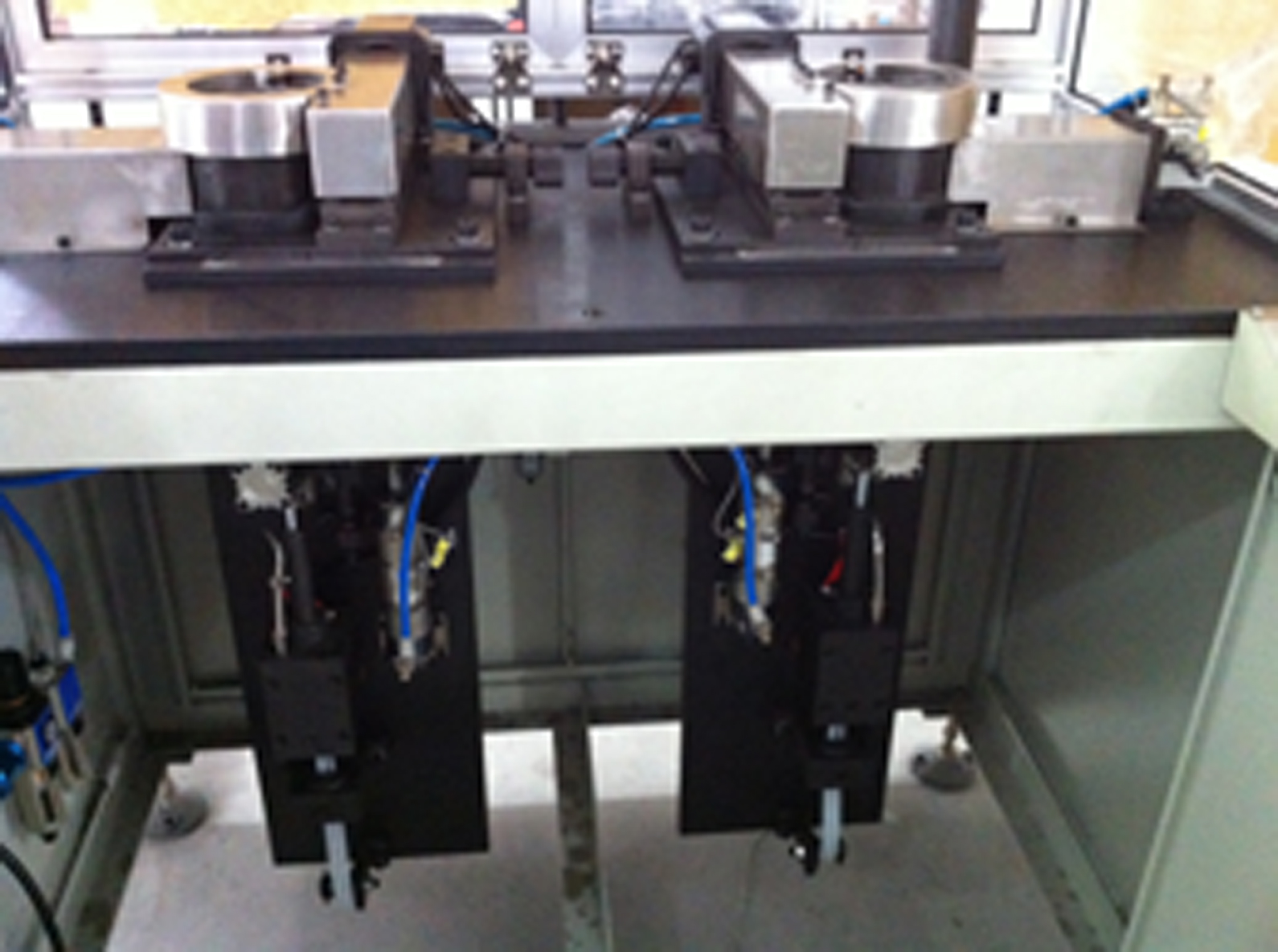

Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting









Please click below link to view video

http://vimeo.com/106465846
