Outrunner BLDC Motors Armature Stator Flyer Winding Machine For Drone Pump Products
WIND-HMW-205D
Skew Stator Winding Machine Application:
Stator flyer winding machine winding outrunner BLDC motors stators such as
Model stator, Fan stator, Ceiling fan stator,
Toy motor,Skateboard Wheel Motor Stator , Big size outside stator,
Drone stator,Airplane ,Aircraft Helicopter Motor Outrunner Stator
RC model aeroplane motors
Flying Models Stator Winding Machine Advantages:
| Winding type | CNC Flyer winding faster than needle winding |
| Smart machine easy to change tooling | A machine that do custom winding schemes to which you can test different kv values in your prototypes and low volume production runs. A winding machine like the WIND-HMW-205D could save a lot of time from ordering custom winding scheme from a manufacturer.
|

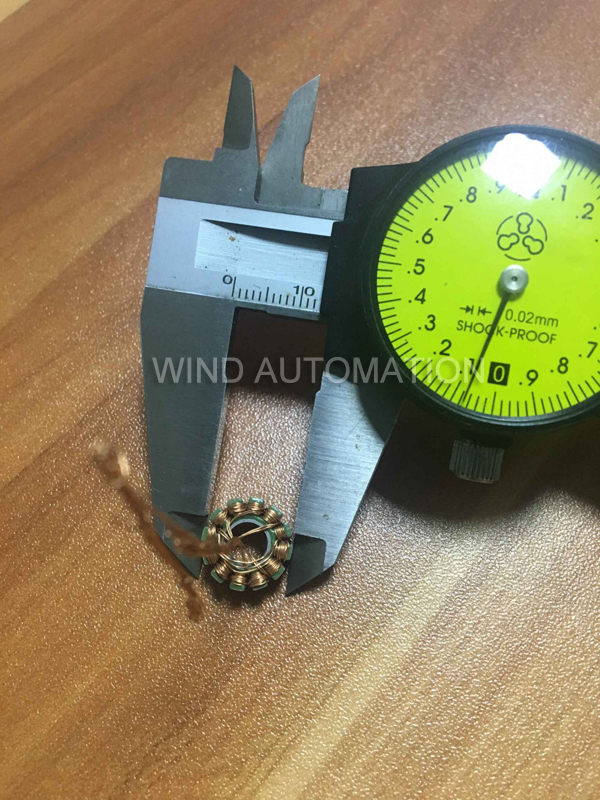

| Outrunner motors stator size | From 2slots to 24slots, other slots are custom made, the smallest outside diameter stator winding machine can wind is 12mm (0.48'' ) , 12slots, showed in below wound stator photo |
| Single wire or multi wires | Can wind stators with one wire or parellel wires |
| Muti wires handled | 30pcs wires with 15pcs tensioners |
Outrunner BLDC motor stator flyer winding machine Parameter:
Wire diameter: 0.10~0.60mm (AWG18 ~ AWG23)
Operation option: Auto
Automatic winding, automatic indexing, automatic winding arranging, automatic clamping and cutting
Stator slot no. : 2 to 24slots (other slots custom made)
Wire displacement: 60mm
Power suplly: AC220V 50/60Hz
Weight: about 350KGS
Dimension: 1260(L)x650(W)x1150(H)mm
Controller: CNC300
The purpose of these windings is to create a magnetic field when a current is run through them
There are several different types of winding machines, from simple manual feed machines to complex
computer-numeric-control (CNC) machines. Some of the more common uses for winding machines are coil
winding, rope winding, and continuous winding. Many industries use these devices,
including electronics,stator,rotor and armature of motor production and wire industries.
Below samples and drawing are needed for machine manufacturing and commissioning:
1. Stator stack 5pcs without winding
2. Wound stator 1pc
3. Copper wire 1 roll enough for winding 10pcs stators
4. Stator lamination drawing and winding drawing
Question and Answer:
There’s another armature, similar to this one but smaller and with a skew, is it possible to wind this type of
armatures with the machine you quoted us?
For the other one with skew, we need to check the sample or drawing to give conclusion,
Please send 3-5 stacks and wires to our address,
If possible, please send 1pcs wound sample of your mentioned skew armature for checking, too

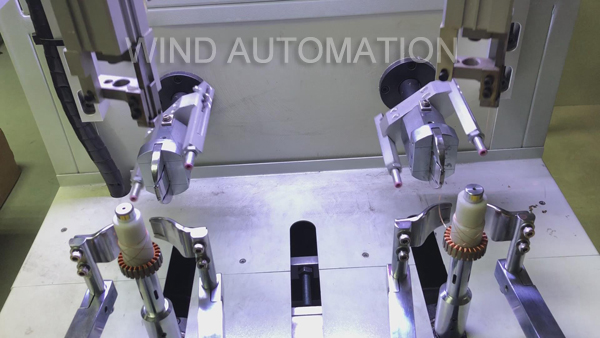

Please click below picture to view video of 24slots stator winder
Winding machine get 1pc wound stator in less than 3 minutes,
This 24slots stator is outrunner motor with a diameter of 35mm and single wire 0.31mm(AWG28)
