Induction Motor Stator Coil Winding Insertion Machine Fully Automatic Ventilador Ocilante

Name: Induction Motor Stator Coil Winding Insertion Machine Fully Automatic Ventilador Ocilante
Brand: WIND AUTOMATION
Price: 1 USD

Brand Name : WIND AUTOMATION

Model Number : WIND-90-CWI

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T

Delivery Time : 60 Working days

Packaging Details : Pallet

Motor Stator Coil Winding : With Servo System

Compare to common coil winder : Save Copper wire

Wire Gauge : Min. 0.1mm (AWG38)

Automation type : Fully automatic Vertical Winding With Rotary Device

Machine Color : White or Per Customer Requirement

After sales : Engineers available to service machinery overseas

Contact Now

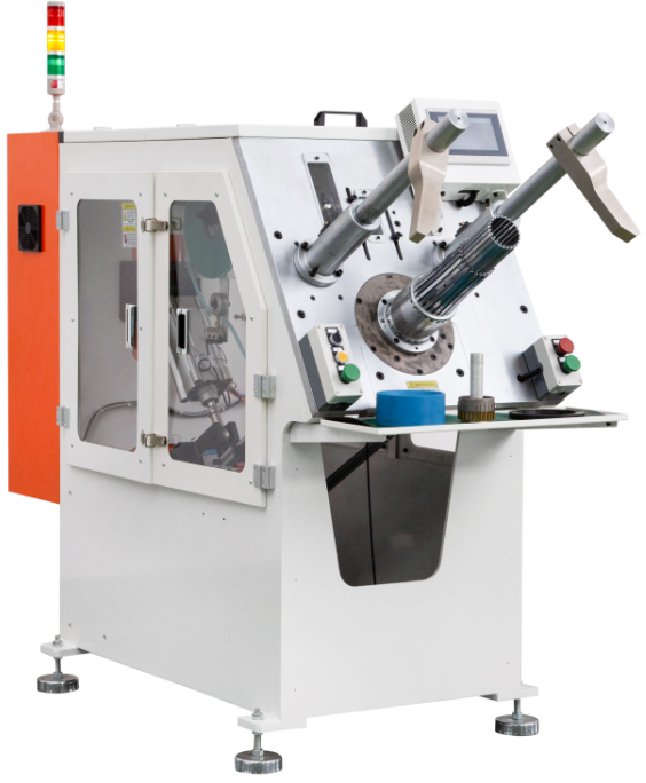

Fully Automatic Induction Motor Stator Coil Winding Insertion Ventilador Ocilante WIND-90-CWI

This machine is used to do stator coil and wedge inserting. It is controlled by servo motor. All the actions will be done by machine automatically, except for loading and unloading.

(1) Specification

Stack length	Max 120mm
Stator ID	20~100mm
Stator OD	Max 160mm
Tooling stroke	Max 70mm
Suitable wire material	Copper/Aluminium wire
Slot number	8~48slots
Power supply	380V 50/60HZ
Weight	850KG
Dimension	1850x650x1700mm

(2) Application
This type of machine is suitable for various types of AC motor, induction motor stators.

(3) Feature
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required

Induction Motor Stator Coil Winding Insertion Machine Fully Automatic Ventilador Ocilante

Please click below link to view video

Induction Motor Stator Coil Winding Insertion Machine Fully Automatic Ventilador Ocilante

Induction Motor Stator Coil Winding Insertion Machine Fully Automatic Ventilador Ocilante Images
