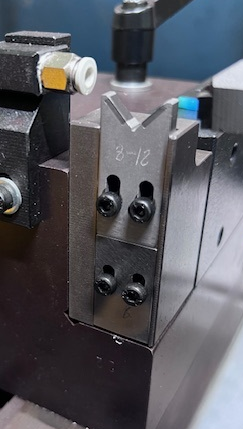

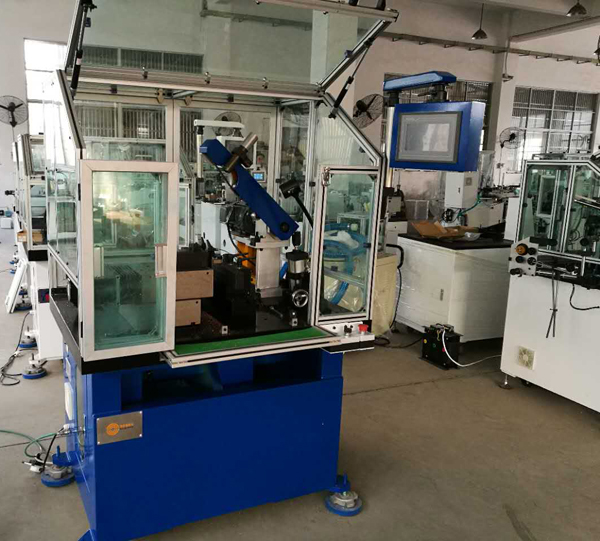

Diamond V Holder And Diamond Cutter Commutator Surface Lathing Machine WIND-CT-TH4
Application:
Small fractional horsepower motor armatures, starter armatures commutator,
The commutator turning process is a important motor manufacturing procedure always after welding
Advantages:
The horizontal and vertical feeds are all Delta servo-controlled, high efficiency, and good stability,
especially suitable for turning face commutator. It is the advanced precision equipment for turning the
commutator outside surface.
1. With two servo axis,
X axis control the length of turning left right horizontal position
Z Axis control the depth of lathing in vertical position
2. Can turn the commutator OD and riser OD of automotive armature
Specification:
1. Roundness < 0.003mm
2. Surface roughness
3. Armature OD 20~80mm
4. Shaft length:32~250mm (If longer need custom made)
5. Shaft Diameter: 2~18mm (can be custom made)
6. Commutator OD: 4.3~60mm
7. Stack OD: 20~110mm
8. Cutting amount:Rough cut Max0.20mm
9. RPM modulate: 0~60Hz
10. Cutter unit: 1um~0.5mm and speed adjustable
11. Cutting length:Max50mm
12. Cutting times: X axis can be setted up to 4times, Z axis 4times can be setted up to 4times
13. Air source: 5~7 MPa
14. Power source 220V 50/60Hz
15. Machine Power: 2.5kw
Question and Answer:
1. Is it possible to process both type of armatures using one machine,or it requires different
tooling?
Yes, you can use one machine and it requires two different kind of V shape Diamond fixture.
2. Does the turning machine have a memory with pre-set programmes for different armatures?
No, when you change to a new type armature, you need to adjust the cutter position.
Please click below link to view the video
https://youtu.be/6IjY1ey-qr0
