AC Motor Fan Stator Ceiling Fan Outside Rotor Outrunner Stator Winding Machine WIND-FW-2
Application:
AC Fan Motor stator, Ceiling fan Ventilator stator, External Rotor, Variable frequency generator
Advantages:
| Wide Application | Variety of application, Simple Winding, Easy Operation |
| Stator Size | Espeically suitable for Stator OD below 68mm and height below 50mm |
| AC Fan Motor | 2 poles, 4 poles, 6 poles |
Parameter:
Wire diameter 0.05~0.45mm
Stator O.D 100~163mm
Slot number Less than 24 slots
Stack height 6~30mm
RPM Max 2500RPM
Voltage 220V/50Hz, or customize
Power AC 1.5KW
Weight 135Kg
Dimension 1350mm*630mm*1130mm
Suggestion:
Winding internal , external slots of ceiling fan motor with
Stator stack height below 50mm and diameter below 68mm and
and suitable for external rotor such as frequency conversion alternator and generator armature
Question and Answer:
1. What type of fan motor can the machine wind?
AC Motor Fan Stator Ceiling Fan Outside Rotor Outrunner Stator Winding Machine is suitable for
winding ceiling fan stator coil , external armature such as frequency conversion alternator and
generator armature.
2. What is the winding accuracy?
Ceiling fan winding machine WIND-FW-2 is a simple
ventilator coil winder which auto winding,arraying,indexing,
array and indexing is controlled by stepping motor,
winding is controlled by frequency converting motor,
turn number could be accurate up to 0.1 turns.
Below samples and drawing are needed for machine manufacturing and commissioning:
1. Stator stack 5pcs without winding
2. Wound stator 1pc
3. Copper wire 1 roll enough for winding 10pcs stators
4. Stator lamination drawing and winding drawing

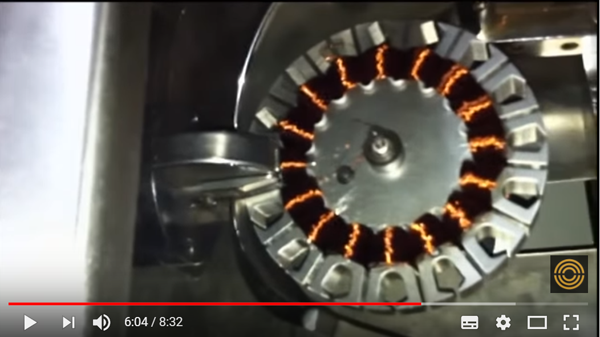

Please click below picture to view video
Product Tags:
|
|
Outrunner Stator Winding Machine AC Motor Fan Stator Ceiling Fan Outside Rotor Images
|
