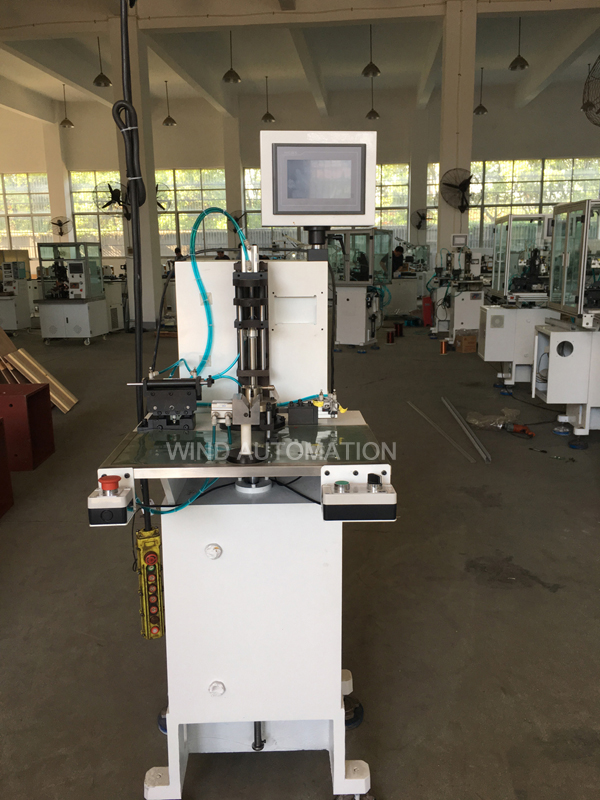

Muti Poles Brushless Motor Stator Needle Winding Machine For Prototypes Production WIND-1-TSM
Application:
WIND-1-TSM is a basic needle winding mchine to be used in laboratory for production of prototypes of
stators covering 6 poles,8poles, 9 poles, 10 poles, 12 poles, 14 poles, 18 poles, such as
Stepping Motor,Brushless DC Motor Muti Poles Stator
Advantages:
| Basic neelde winding one by one slot | Easy to adjust and operate for types of stators, very suitable for pilot run laboratory use |
| Min. Slot size | Can handle big an small Stator with opening of slot 1mm |
| Tooling change Size | Winding machine type WIND-1-TSM , stator with 6poles, 8poles and 9 poles can use same winding machine by changing tooling, stator with 10poles, 12poles, 14 poles can use same winding machine by changing the tooling, |
Winder Techanical Specification:
Wire diameter: 0.08~1.20mm
Turns No.0-99999
Stator ID:9~65mm Stack height:7-115mm
Stator Min Slot size : 1mm
Min. Needle Nozzle Size:3*0.35*8.5mm
Operation option: stepping/Auto
Stator poles: 6 poles, 8 poles, 9poles,10poles,12 poles,14pole,18poles (Customized)
Air pressure:0.5~0.7MPa Power:1KW, AC220V 50/60Hz
Weight: about 350kgs Dimension: 1600(L)x900(W)x1450(H)mm
Productivity: Per stator opening of slot 1mm, suggest speed below 350RPM
Question and Answer:
1. Which type of stator needle winding shall we select for our stator?
The machine WIND-1-TSM is widely used for 6 poles, 8 poles, 9 pole, 10 poles, 12 poles, 14 poles and
18 poles
Stepper motor and BLDC motor with Single phase or three phase
Machine Winding, Indexing and Cutting automatically without arraying for slot filling rate not high stator
The winding machine WIND-1-TSM with winding not arrraying automatic indexing device and angle
swing cam device is very suitable for winding big and small wire , heave or light BLDC motor stators
2. How is the training to operate the stator winding machine?
For machine tranining, usually you send one engineer people to our plant to inspect before delivery,
WIND-1-TSM is not a complicated machine, if your engineer have experience then you don't need to
come and we can take some vidoes for you to operate
3. Is the machine from you is switched on and put into operation?
Yes, machine is switched on from machine side for power on machine and
Start, Emergency button , Auto/Step swith to operate machine
4. I have not wound stator. Why do you need for wound stator?
The wound stator can show Shanghai Wind Automation
the winding diagram which include winding way,bridge wire, terminal wire
If you don't have wound stator, please provide winding drawing
Below samples and drawing are needed for machine manufacturing and commissioning:
1. Stator stack 5pcs without winding with insulation cap or isolation paper
2. Wound stator 1pc
3. Copper wire 1 roll enough for winding 10pcs stators
4. Stator lamination drawing and winding drawing
Please click below picture to view video
