Armature Flyer Winding Machine Brushless Motor Coated Stack Outrunner Stator

Name: Armature Flyer Winding Machine Brushless Motor Coated Stack Outrunner Stator
Brand: WIND AUTOMATION
Price: 1 USD

Brand Name : WIND AUTOMATION

Model Number : WIND-HMW-205D

Certification : Main parts CE

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T

Delivery Time : 45 Working Days

Packaging Details : Poly wood case suitable for sea and air shipment

Copper Wire : Single or Muti Wires

Wire diameter : Single Wire 0.1mm to 0.6mm

Parallel Wire : 0.28mm to 0.56mm

Winding Type : Flyer winding,not needle winding

Human-Machine Interface : Diagnose Show on CNC screen

Operation method : Step, Auto, JOG

Contact Now

Brushless Motor Coated Stack Outrunner Stator Armature Flyer Winding Machine WIND-HMW-205D

Application:

Armature flyer winding, Bicycle motor generator stator,

Airplan toy stator winding for single wire and parallel wires.

Competitive Advantages:

Mass production yield

1200pcs output per shift for a OD 72.8mm bicycle generator stator

Pass rate

99.9% good winding quality passing rate, stable and high efficiency

Automatic winding

Widely applied for outrunner stator such as bicycle generator

Parameter Data:

Wire diameter: 0.10~0.60mm (AWG22~AWG38)

Operation option: Automatic winding, automatic indexing, automatic winding arranging, automatic clamping

and cutting

Stator slot no. : 2 to 24slots (other slots custom made)

Stator stack height:5~50mm (0.197''~1.969'')

Stator OD:20~140mm (0.78'' ~5.5'')

Wire displacement: 60mm(2.36’’)

Power suplly: AC220V 50/60Hz

Weight: about 350KGS

Dimension: 1260(L)x650(W)x1150(H)mm

Information needed for Commutator Armature Winding Machine inquiry:

1. Stack lamination drawing

2. Wire size, turns no.

3. Winding configuration

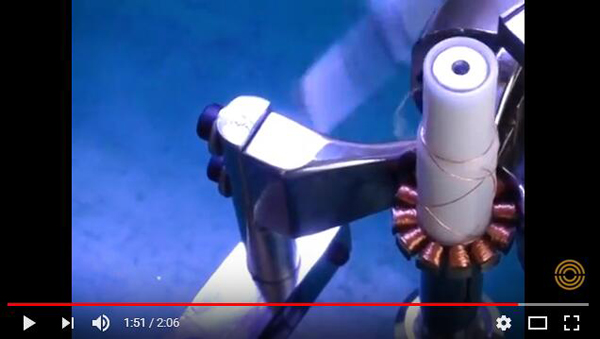

Please click below photo to view video
