Automatic Armature Lap AC Motor Winding Machine For Universal DC And AC Electric Motors

Name: Automatic Armature Lap AC Motor Winding Machine For Universal DC And AC Electric Motors
Brand: WIND AUTOMATION
Price: 1 USD

Brand Name : WIND AUTOMATION

Model Number : WIND-STR

Certification : Main parts CE

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T

Delivery Time : 45 Working Days

Packaging Details : Poly wood case suitable for sea and air shipment

Armature Commutaor type : Hook type,Tang type

Rotor Armature type : AC and DC motors armature

Armature Slots : Double flyer Even Slots covering 12 slots,16slots,24slots,28 slots,36slots

Winding Type : Lap winding not Wave winding

Human-Machine Interface : Diagnose Show on screen

Operation method : Step, Auto, JOG

Contact Now

Automatic Armature Lap Winding For Universal DC And AC Electric Motors WIND-STR

Application:

This armature winder WIND-STR is a fast flyer coil winding machine for motor mass production

manufacturing of hook type tang type commutator armature,Mixer,Vacuum cleaners, Hammers,Power

tool...

Competitive Advantages:

Crazy Fast

In normal condition can wind at speed 1000~1500rpm, get one piece wound

armature in 23s

Easy Operation

The winding parameter can be setted on touch screen for different armatures

Slot and Hooks no.

12 slots, 24 hook, 12 slots,12 hooks

Parameter Data:

Wire diameter range: 0.16~1.2 mm

Armature diameter: 20~85 mm

Stack length: 10~70 mm

Shaft diameter: 3~15 mm

Shaft length: less than 250mm

Armature Slot: even slot

Turn number: 0~9999

Commutator diameter: 8~40 mm

Winding speed: 0~2500 rpm

Winding motor power: 1.5KWX2

Angle detecting speed: 0~3000 rpm

Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2

The machine total power: 4.0 KW

Voltage: three phase AC 380V 50/60 Hz

Weight: 1250 Kg

Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000

Main Parts:

Japan Mitsubishi PLC

Japan Mitsubishi or Panasonic servo motor control system

5.7’’ colorful touch screen system

SMC Cylinder

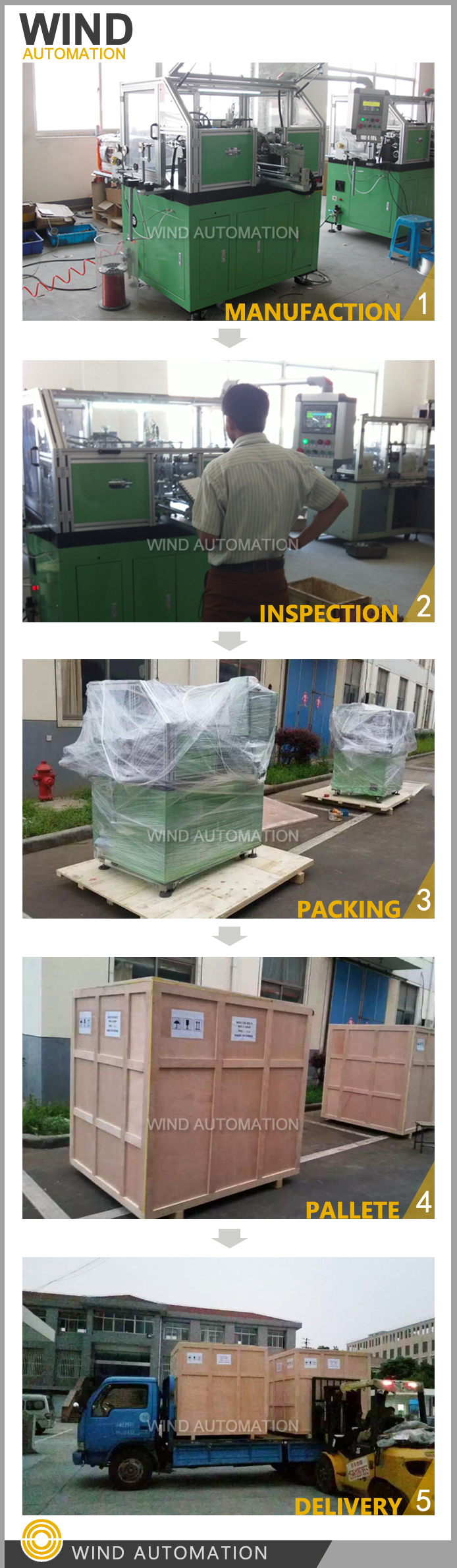

Below photo shows how an armature winder was born:

Automatic Armature Lap AC Motor Winding Machine For Universal DC And AC Electric Motors
