Armature Slot Cell Paper Inserting Machine 0.5 To 0.8 Second Per Slot DC Motor

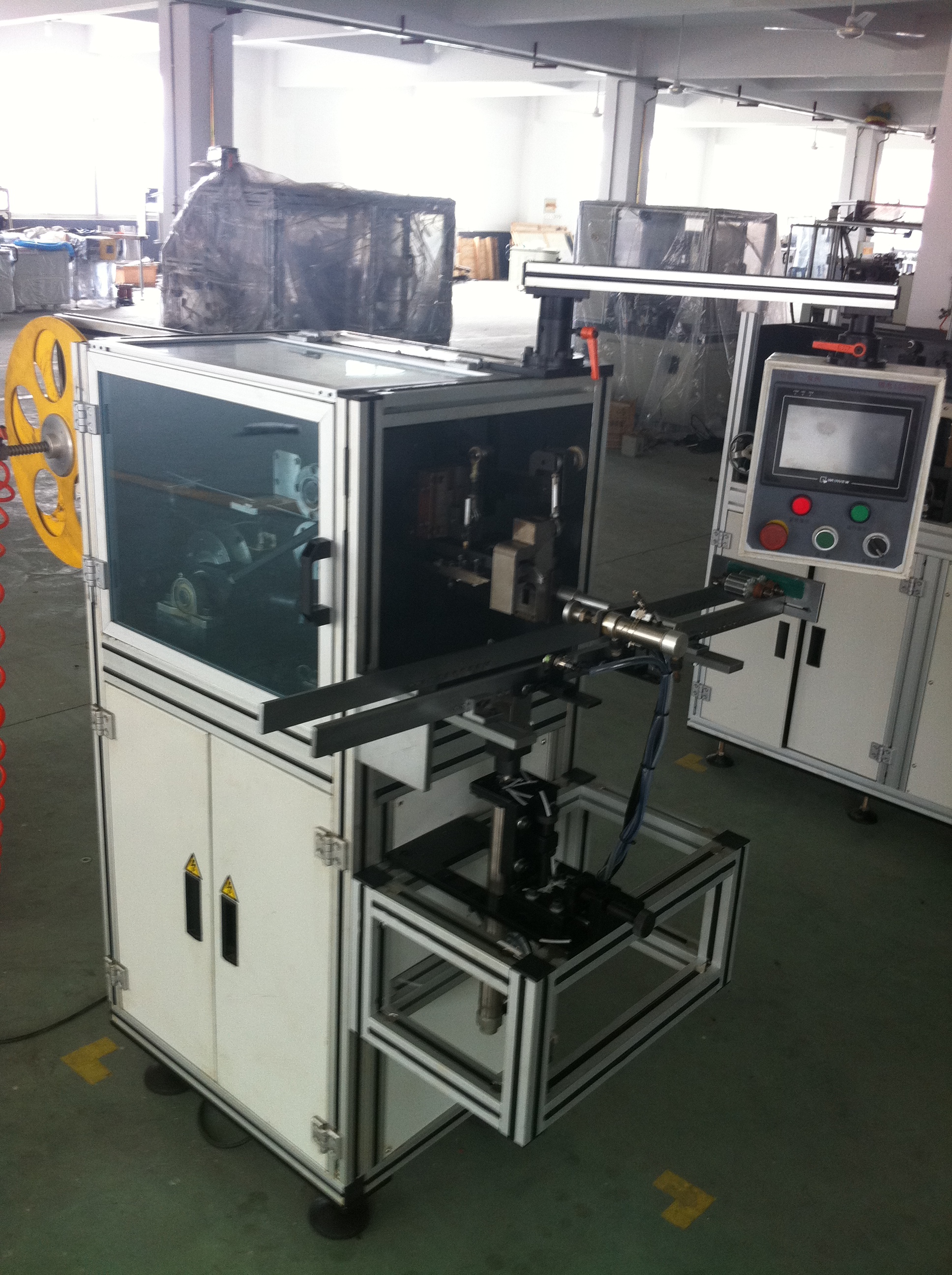

0.5 To 0.8 Second Per Slot DC Motor Armature Slot Cell Paper Inserting Machine WIND-1P-1

Application:

This paper inserting machine form, cut and insert the insulation paper polyester to armature's slot,

the process is forming, cutting, inserting, indexing to next slot,

repeat the action until all the setted armature slots are finished,

one armature is well inserted,machine automatially place the next armature and repeat the job.

Parameter:

Armature O.D: Ф20-55mm

Length of lamination: Max 60mm

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Speed regulation range: 0~60Hz

Length of insulation paper: 15-60mm adjustable

Thickness of insulation paper: 0.1 mm ~ 0.5 mm

Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.

Insulation paper shape: V or edge-folding V

Efficiency: 0.5sec - 0.8sec/per slot, loadingàclampàfeeding paperàunloading

Air source: air pressure: 4~6kg/cm2

Machine power: 1.0KW

Voltage: AC220V±10%, 50/60Hz

Weight: about 400Kg

Dimension : L910 mm x W880 mm x H1300mm3

Please click below photo to view video

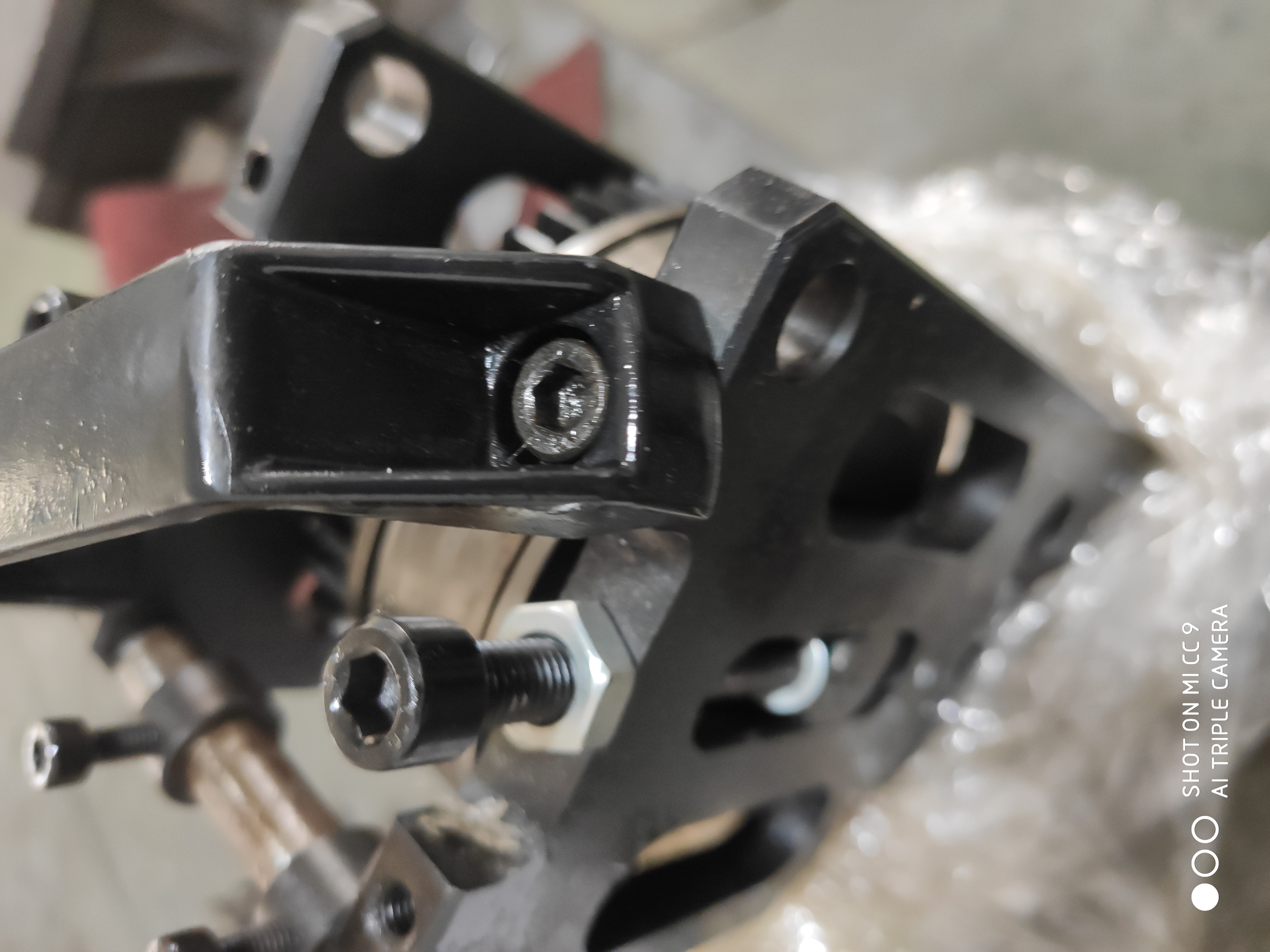

Crease loose tight ajustable device (usually don't need to do ajustment, before delivery was commissioning accoring to armature slot)

motor insulation paper

inserter machine
