150mm Slot Cell Cuffing Machine Insulation Cell Folding And Creasing Machine WIND-150C-IF
Operation theroy

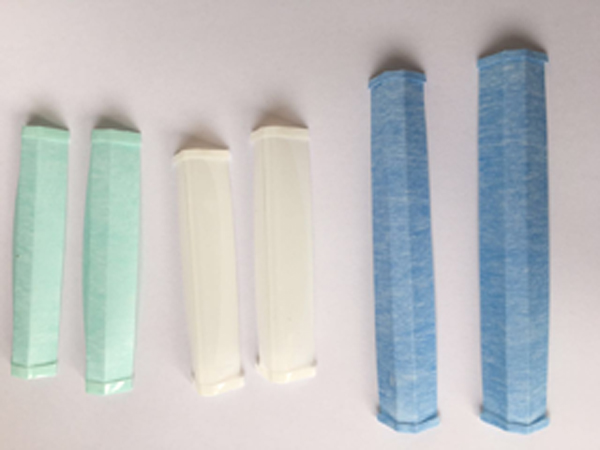

Fold and cut the motor insulation paper, then heat and creasing the cell insulation polyeste
film,DMD,PET,NMN,NHN,Nomex for application such as pump,ceiling fan, compressor,hood motors
Advantages
1. Simple and easy to operate
2. Machine can cut and bend insulation for the motors and
also cutting insulation without bending for other type of slotless motor
3. No maintenance needed, only polish or replace cutter after 2 year to 5 years usage
Parameter
Cutting width <150mm (WIND-150C-IF,if bigger need tailor made machine)
Slot insulation cutting width such as 120mm,250mm,300mm can be customized made
Cutting speed: 100pcs/minutes
Heating temperature: <200℃
Insulation paper thickness 0.10mm~0.35mm
Edge folded width 2.5mm~4mm, 5~10mm(customized made)
Cutting length(marked as red dimension) < 70mm (Servo feeding)
Cutting length<40mm (Mechanical feeding)
Creasing Cuffing length related to the thickness of iron plate fixture(for example 5mm)
Please click below picture to view video
The insulaiton materials are mainly used as a slot liner,slot closure,phase and turn-to-turn insulation in
low or medium voltage electrical motors.Besides it is also used as interlayer insulation in transformers and
other electrical appliances.
Electrical Insulation - Wiring, Sleeving & other Electrical Sheilding Products. These products are used in
electrical applications to insulate high voltage current from surrounding areas. These products are
typically known for dielectric strength, arc resistance, thermal performance and insulating properties.
Common applications include dry and oil-filled transformers, switch gears, relays, wire wrap, welding
apparatus, electrical fixtures, commercial & residential electrical, lighting systems and more. These
products are known for their ability to insulate electrical current, withstand mositure and corrosion, and
resist arc and flame. Many of these materials can serve as practical and safe insulators for low to
moderate voltages (hundreds, or even thousands of volts).
