WIND-150-IF Slot Insulation Machine Cell Insulation Forming Stator Paper Cuffing Creasing And Cutting

Name: WIND150IF Slot Insulation Machine Cell Insulation Forming Stator Paper Cuffing Creasing And Cutting
Brand: WIND AUTOMATION
Price: 1 USD

Buy cheap WIND-150-IF Slot Insulation Machine Cell Insulation Forming Stator Paper Cuffing Creasing And Cutting product

Brand Name : WIND AUTOMATION

Model Number : WIND-150-IF

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T

Delivery Time : 30 working days

Packaging Details : Wooden pallet suitable for sea or air shipment

Condition : New

With or without heater : No heating Penumatic device

Creasing size : Per Stator slot size

Cutting thickness : Below 0.35m

Machine Color : White or Per Customer Requirement

After sales : Simple machine only need to replace cutter

Contact Now

Slot Cell Insulation Forming Stator Paper Cuffing Creasing And Cutting WIND-150-IF

(1) Application

This slot cell forming machine WIND-150-IF stator insulation paper cuffing creasing and cutting machine

form and cut the insulation paper for induction motor cell insulation such as pump,ceiling fan,

compressor,hood motors.

(2) Parameter

Feeding length: adjustable

Cutting width <150mm

Cutting thickness < 0.35mm

Edge folded width 2.5mm~4mm

Weight: around 150KGS

Dimension: 500*900*1200mm

(3) Ask and Answer

1. if the machine only cut the insulation or can also bend the insulations?

--- Yes, it can cut and also bend the insulations, the bend we call it edge folded

2. What are the maximum and minimum width of the insulation?

--- Width of the insulation Min 10mm, Max 150mm

3. What is the thickness of the insulations?

--- 0.05mm to 0.35mm

4. What kind of material can bend and cut?

--- DMD,PMP and other Polyester film

Please click below photo to view video

Product Tags:

paper inserting machine

inserter machine

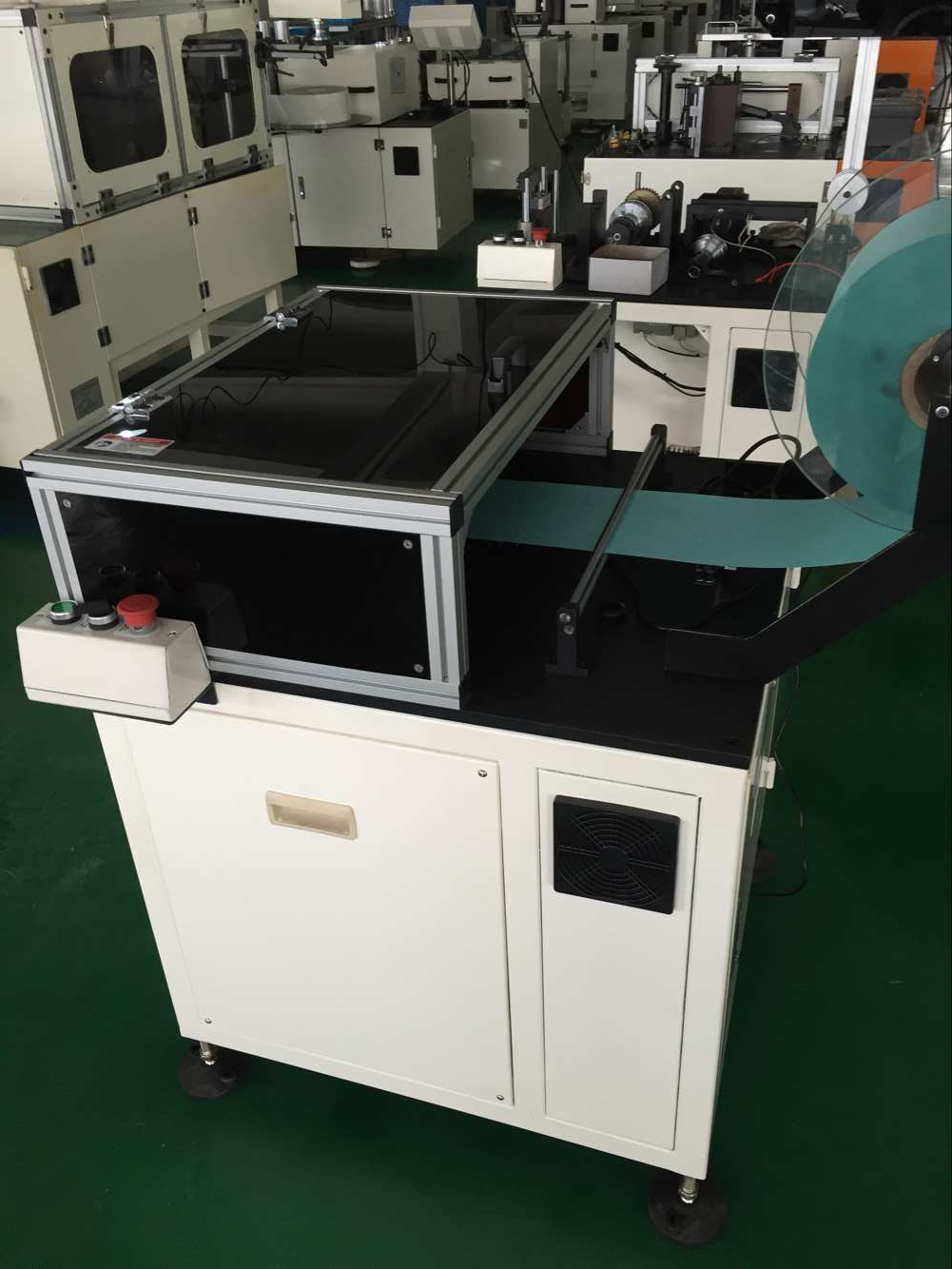

WIND-150-IF Slot Insulation Machine Cell Insulation Forming Stator Paper Cuffing Creasing And Cutting Images
